GFCI Wiring Method

By Dave Rongey
Summary: Article shows outlet wiring a GFI using the tailed method. The tailed wiring method enables you to install one GFI outlet to protect one location without affecting other devices on the circuit.

GFCI Outlet Electrical Wiring the Tailed Wiring Method

Installing more than one GFCI at multiple locations

GFCI home wiring - The tailed wiring method is very useful and enables the GFCI protection to be location specific. One example where this is very advantageous is in a two story residence where there is a bathroom downstairs and a bathroom upstairs.

If the circuit was protected by only one GFCI on the downstairs level and second floor bathroom created an accidental trip, the person in the second floor bathroom would require the first floor GFCI to be reset. This method of GFI outlet wiring can be a real disadvantage.

Below you will see some photos of recent home wiring projects that I have selected to help you with your project.

In this home wiring installation you will see how I converted a typical receptacle into a GFCI that will then be operated independently of the other devices downstream on the circuit.

Take a look at GFCI home wiring - The Tailed Wiring Method in a typical installation:
[Click on the images to Enlarge]

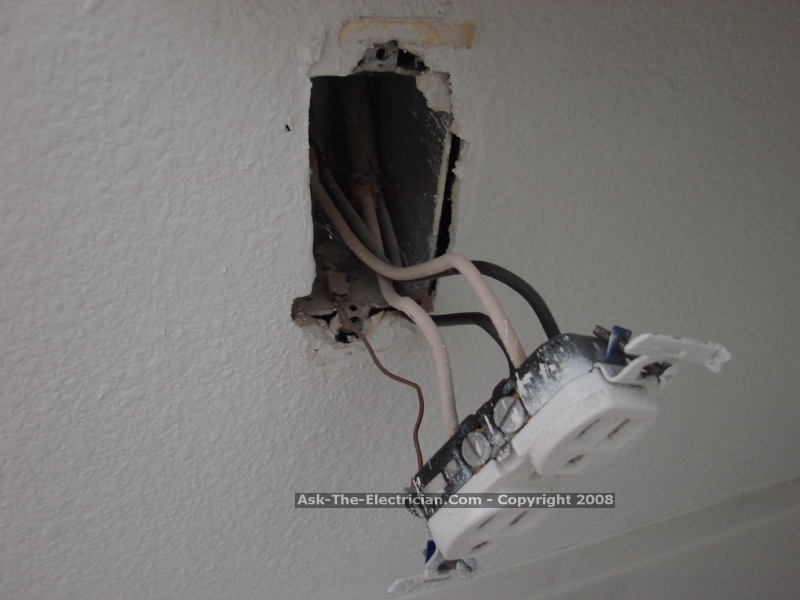

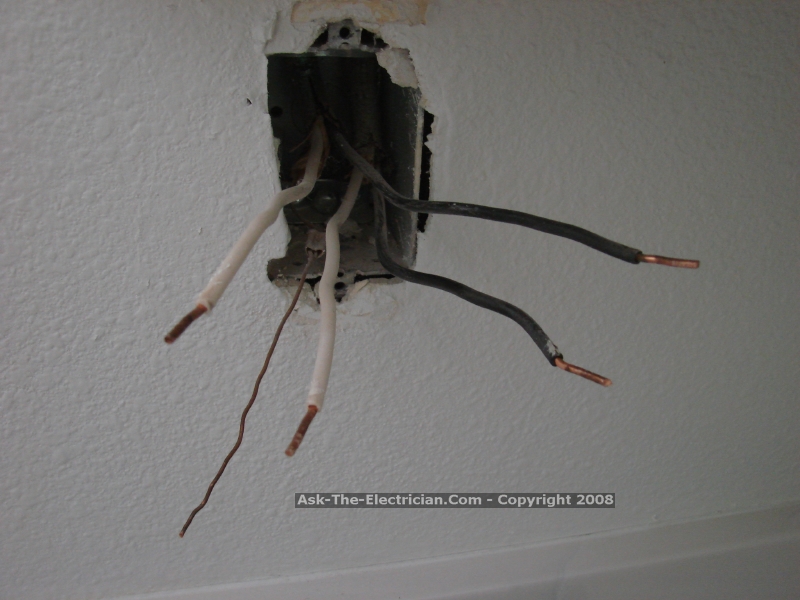

		After shutting off the power, begin by removing the existing receptacle.

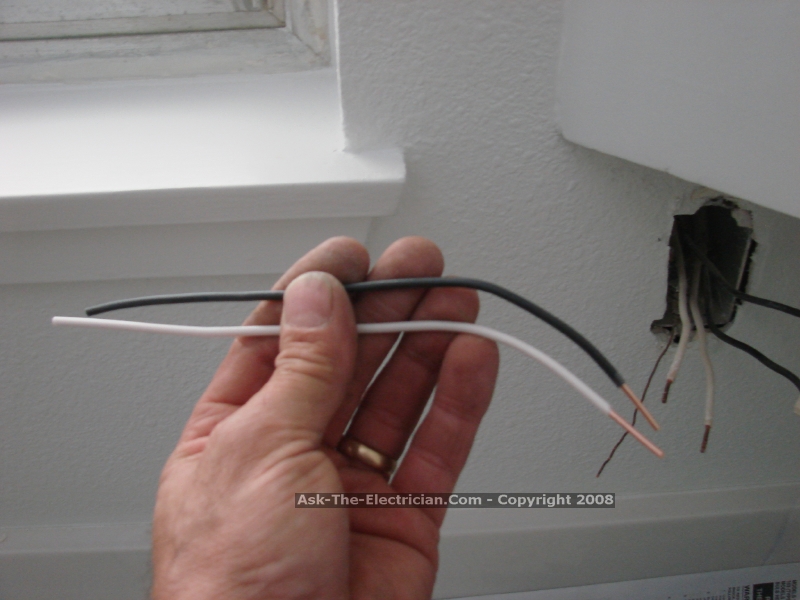

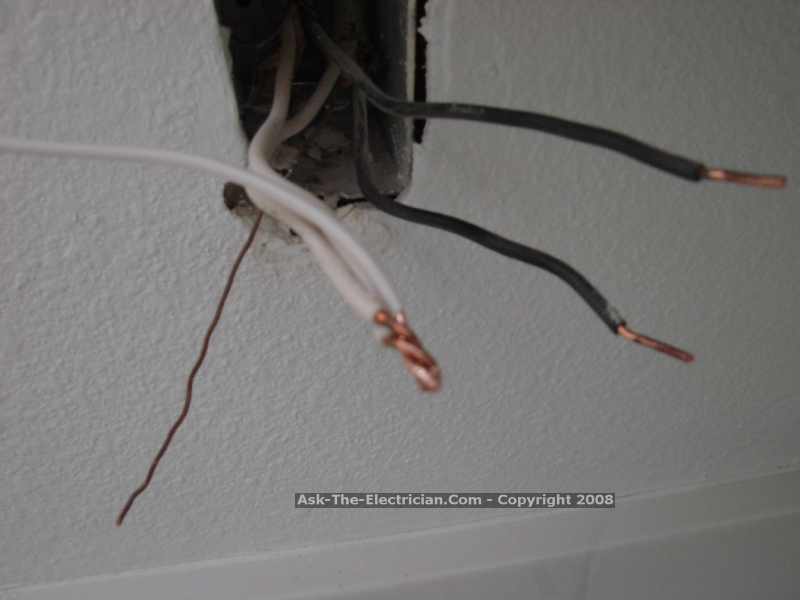

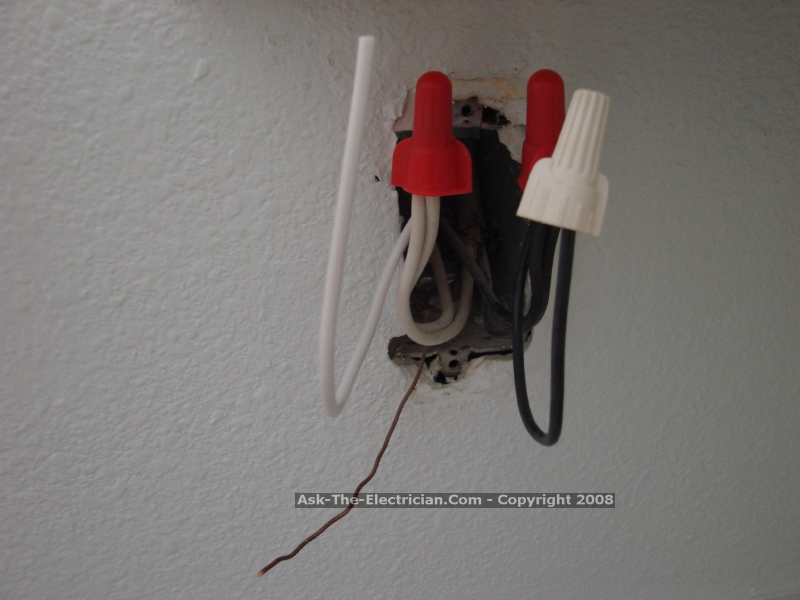

Inspect the wires and check to be sure the ground is bonded through.	Make two "tails" one for each insulated wire.	Twist the wires together evenly, then screw the wire connector firmly.

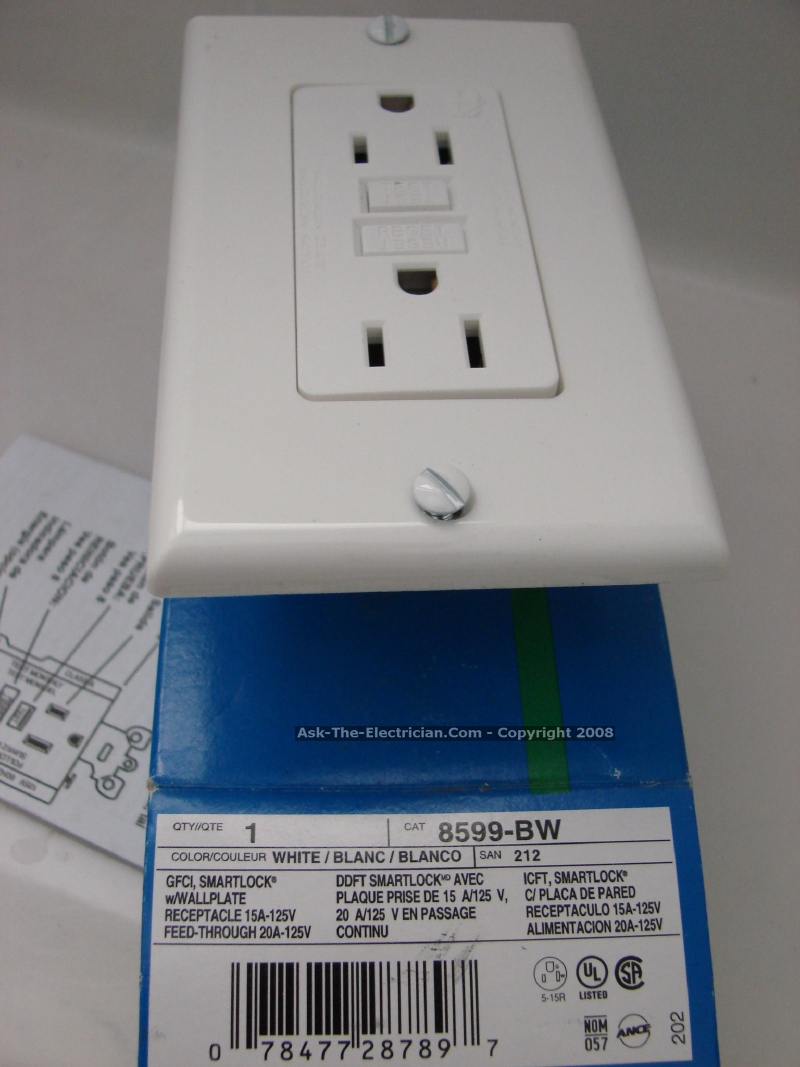

	I like using the 15 amp rated GFCI receptacle which is rated for 20 amp feed through capacity.

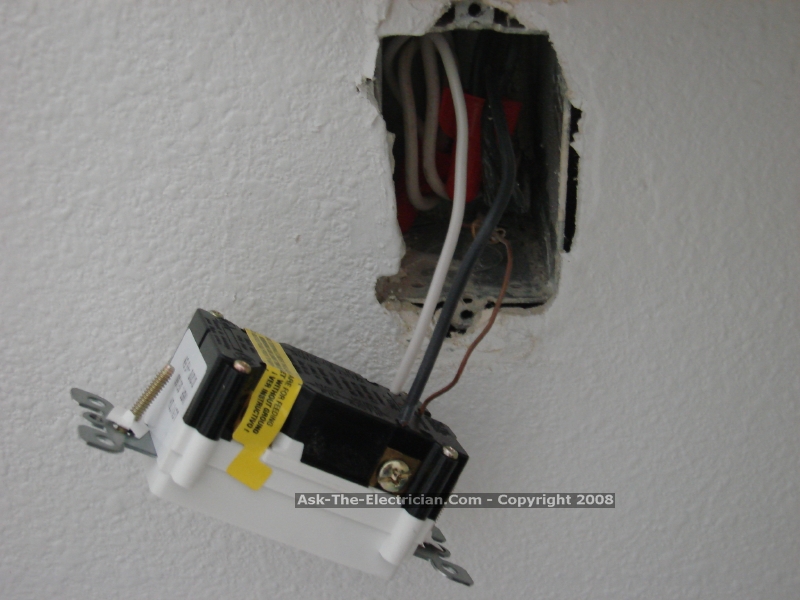

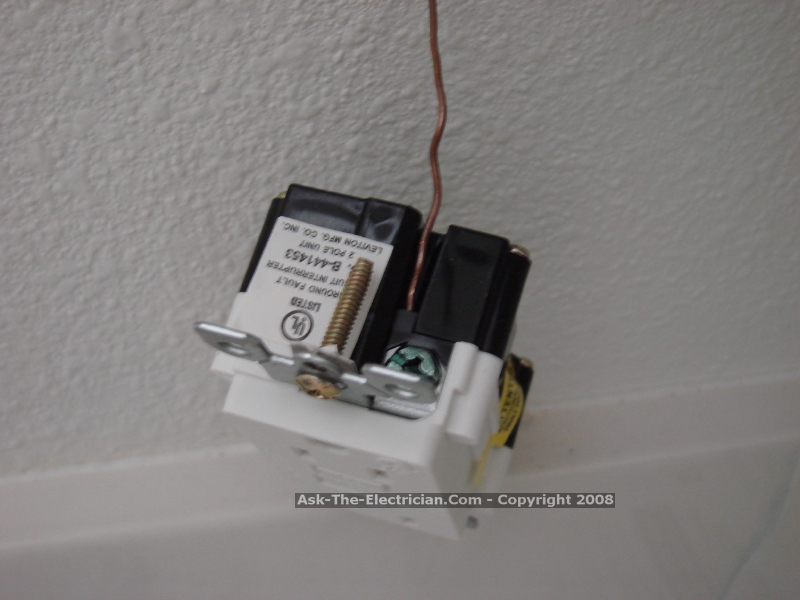

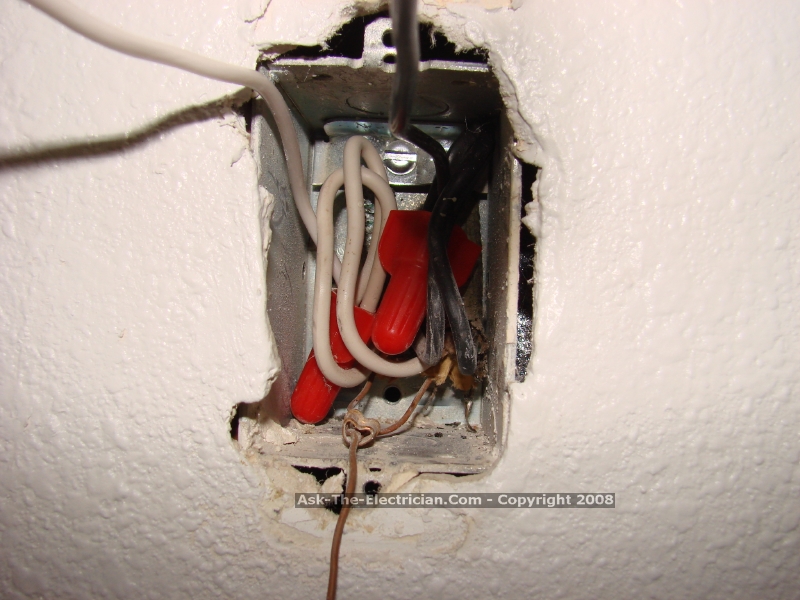

Fold the spliced wires back into the back of the box making room for the GFCI.	Attach the ground wire to the provided ground screw connection.	Attach the tails - black to the hot wire terminal, and the white to the white wire terminal .

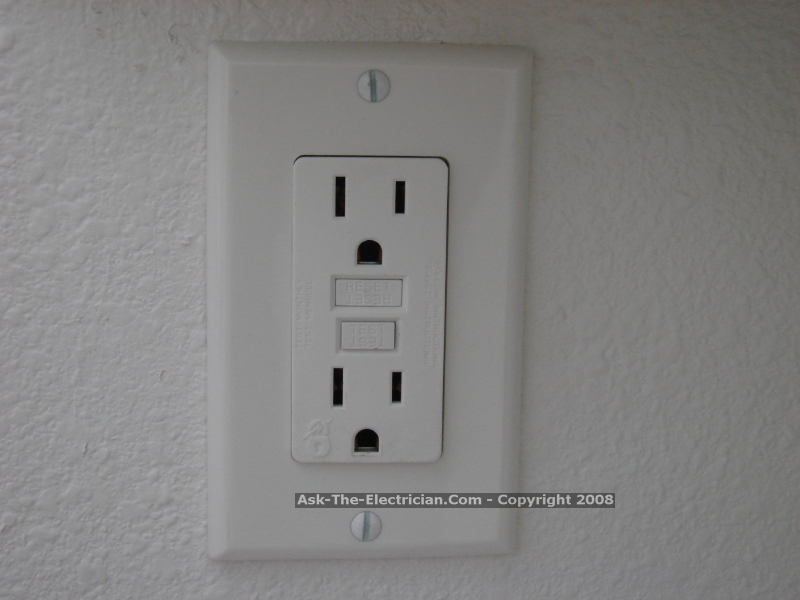

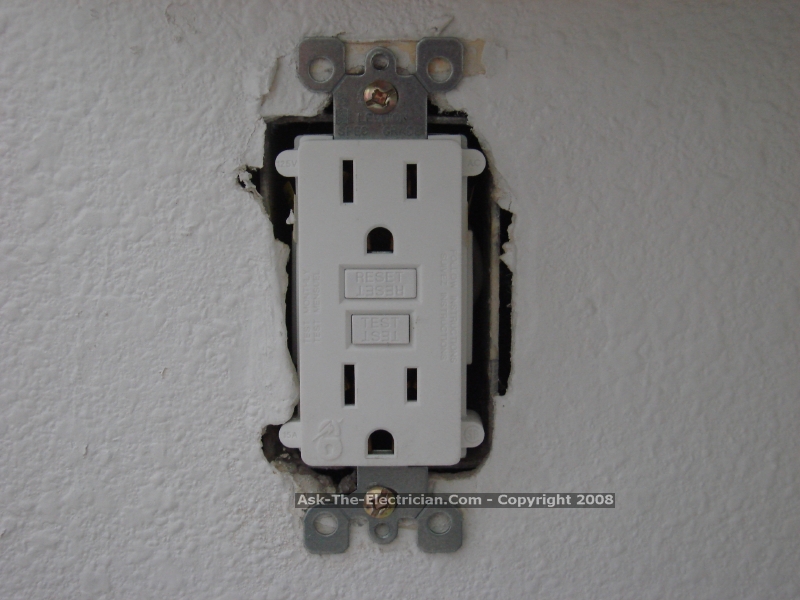

Install the GFCI receptacle.	Mount the cover plate.	The circuit is turned on and tested.
