Basic Electrical Wiring Methods Explained


electrical-wiring-problems
By
Summary: The following pictures reveal incorrect electrical wiring practices. The correct electrical wiring method is explained with more detailed information and procedures.


Electrical Violations and How They Can Be Avoided


Electrical Wiring Video

Install a Generator and Transfer Switch Panel

NOTE: A List of All my Helpful Videos

Will Display at the End of This Video

So Keep Watching So I Can Help You Wire it Right!


Check out my YouTube Channel:
» AskTheElectrician «
and Subscribe!


But it's always worked just fine -
This comment may be true for some, however it could be just a matter of time until an incorrect electrical wiring project could turn into a very bad result.

The #1 Mistake with anything is the failure to read and understand instructions, followed next by the choice to not do the project correctly. This creates what could be the start of a very dangerous situation.

Do it right the first time is always my advise, this is why performing all work with a permit and having the work inspected is essential for all electrical projects.

I really admire folks who decide to do electrical wiring projects around the home, but Please don't do work like this!
Open Splice

This is an illegal wiring splice which should have been placed into a junction box and covered with a blank plate.

Click Here to see the Correct and Legal Solution - The Correct Junction Box and Splice Method.

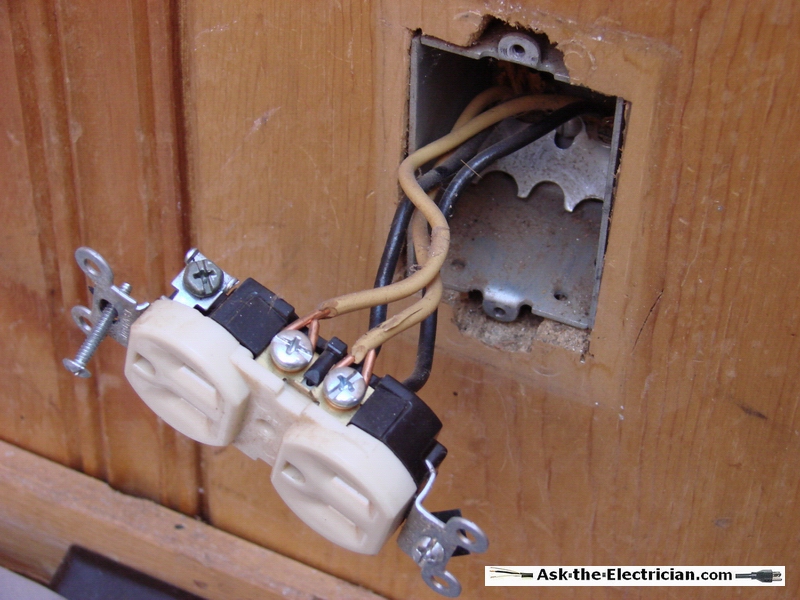

Illegal open air electrical splice This 3-prong "grounded'" receptacle is missing a ground wire, worse yet is that one is not found in the receptacle box either.

If a grounded device is connected to this receptacle it will create a hazardous condition and the possibility of electrical shock or worse if a device failure should occur.


If no ground is available, the inspector will require that you install an old style 2-prong receptacle.



I will be adding more pictures to help you spot possible problem areas with your home electrical wiring.
