How to Wire a Ceiling Heater Fan
 ';
|
How to Wire a Ceiling Heater Fan – I took out an exhaust fan from the ceiling and I am installing a ceiling heater fan. © By: Dave Rongey |
Wiring for a Ceiling Heater Fan
Electrical Project: I took out an exhaust fan from the ceiling and I am trying to install a 157 Broan NuTone ceiling heater fan.
Ceiling Heater Fan
John’s Home Wiring Project:
- I took out an exhaust fan from the ceiling.
- The ceiling wire has a black, white and ground wire.
- The wire is a 14 2 Romex wire.
- I am trying to install a 157 Broan NuTone ceiling heater fan.
- It has 2 wires a black and a red.
- I would like to know how to connect the wires from ceiling to heater fan.
- I tried black to black and red to white but it tripped the circuit breaker, to where it will not go back.
- The wires from the ceiling go to a switch that I think is connected to another switch next to it.
- That second switch goes to a different set of lights.
This request came from John in Saint Charles, Missouri.
Dave’s Reply:
Thanks for your sharing your electrical wiring project John.
How to Wire a Bathroom Ceiling Heater
Application: How to Wire a Wall Light.
Skill Level: Intermediate to Advanced – Best performed by a Licensed Electrical Contractor, or Licensed HVAC Contractor.
Electrical Tools Required: Basic Electricians Pouch Hand Tools, Voltage Tester, and appropriate Safety Gear.
Estimated Time: Depends on the personal level experience, ability to work with tools, install electrical circuit wiring, and the available access to the project area.
Electrical Safety: Identify the electrical power source to the Wall Light, turn it OFF and Tag with a Note before working with the electrical wiring.
Electrical Wiring Parts and Materials: Electrical parts and materials for the Wall Light should be approved for the specific project and compliant with local and national electrical codes.
Electrical Codes and Inspections: Installing or changing home electrical wiring should be done according to local and national electrical codes as adopted in Saint Charles, Missouri. A permit and inspections may also be required.
How to Wire a Wall Light in a Bathroom
This electrical wiring project is about How to Wire a Wall Light in the Bathroom of a Old Home.
Broan® Fan-Forced Ceiling Heater, Low-profile, 1250W, 120VAC
Wiring a Ceiling Heater Fan
Reviewing John’s Project:
- I took out an exhaust fan from the ceiling. the ceiling wire has a black, white and ground wire. the wire is a 14 2 Romex. I am trying to install a 157 Broan -Nutone ceiling heater fan. it has 2 wires a black and a red.
i would like to know how to connect the wires from ceiling to heater fan. I tried black to black and red to white but it tripped the circuit breaker, to where it will not go back. The wires from the ceiling go to a switch that I think is connected to another switch next to it. that second switch goes to a different set of lights.
John, from the information you have provided:

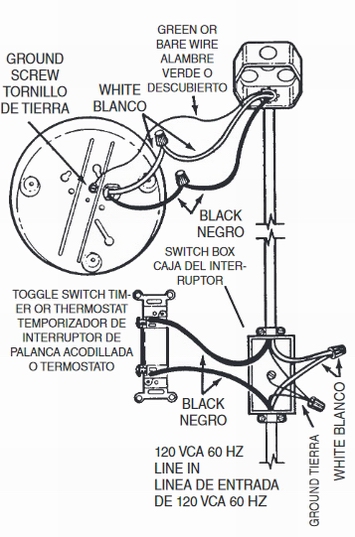

- From what you have described, the Broan 157 should have a white, black, and ground wire – which would typically be attached to the wiring in the ceiling as with the original fan.
- Be advised that this heater will add an additional 1250watts load the existing circuit, which may cause an overloaded condition and trip the circuit breaker.
- With high load heater devices such as this it is best to install a dedicated circuit to avoid circuit overload.
The Features of this Heater
The 1250-Watt Surface-Mount Fan-Forced Ceiling Heater from Broan features an enclosed, sheathed element and a built-in fan to help evenly disperse heat. Ideal for a mudroom, bathroom, den, office or other cold areas of the house, this ceiling fan offers a lubricated motor for years of maintenance-free operation. The low-profile design mounts to a standard 3-1/2 in. or 4 in. round electrical box or a 4 in. octagon ceiling box.
- The heater is enclosed, and has a sheathed heating element that produces 1250Watt of heat at 120Volt power to disperse warmth evenly.
- Automatic overheat protection helps prevent damage.
- Durable aluminum construction offers lasting performance.
- Built-in fan helps distribute heat uniformly.
- Low-profile design mounts easily to a standard 3-1/2 in. or 4 in. round electrical box or 4 in. octagon ceiling box.
- Satin aluminum finish complements any interior decor.
- Meets UL listing safety standards.
- Suitable for indoor use only.
- Measures 11 in. Dia x 2.8 in. H.
IMPORTANT: Controls are Designed for use with this product which are available separately:
- Model 86W Line-Voltage Thermostat – to regulate a safe temperature in the bathroom.
- Model 61W/61V 15-Minute Timer – to limit the amount of time the heater will be on, and turn it off automatically to prevent the dangers of overheating the room and materials.
SAFETY NOTE:
- The heater will provide 1250 Watts of radiant heat from an enclosed metal-sheathed element.
- The heater must have automatic overheat protection, and proper circuit wiring.
