How Electrical On-Delay Staging Relays Work

staging-relay
By
Summary: This section will cover the use of relays that are sometimes needed to control special device loads such as Air Conditioners and other high demand equipment from starting at the same time.


Check Out What Others Are Sharing at Ask the Electrician:
Your site is very useful. Rick from Cincinnati , Ohio

Problem Solvers for Air Conditioners - Energy Savers for Large Electrical Loads



Electrical Wiring Video

How to Wire a GFCI Outlet without a Ground Wire

NOTE: A List of All my Helpful Videos

Will Display at the End of This Video

So Keep Watching So I Can Help You Wire it Right!


Check out my YouTube Channel:
» AskTheElectrician «
and Subscribe!



This method will help prevent nuisance tripping of sub-feed circuit breakers and reduce the electrical demand on your utility service which could lead to much higher energy bills.

Introduction:
ICM100/101 DELAY ON MAKE.
• 3 or 5 minute fixed.
• Works with anticipator thermostats.


MODE OF OPERATION:

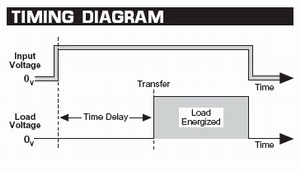

When power is applied to the input, the time delays begins. After the time delay is complete, the load energizes and remains energized as long as power is applied. The control is reset by removing power during or after the time delay period.


INSTALLATION

1. Disconnect power.

2. Connect terminals in series with the
starting device as shown in the wiring
diagram below.

3. Reapply power, check operation.

4. Trickle current bypass resistor
T1 to T3 <1K ohm.

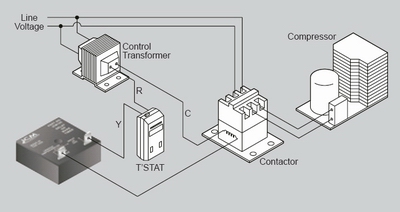

2-Wire Compressor Staging/Startup Delay Timer:

timedelayrelay1

timedelayrelaywiringdiagram


SPECIFICATIONS
Input:
• Voltage: 18-30 VAC
• Frequency: 50/60 Hz
Output:
• Output Ratings:
– Maximum: 1.5 amps
– Minimum: 40 mA
– Inrush: 15 amps
Time Delay
• 3 or 5 minute fixed
