Telephone Wiring Diagram #1
 |
By Dave Rongey
|
Telephone Wiring Diagram for Home Telephone Jacks
Wiring a Telephone Jack

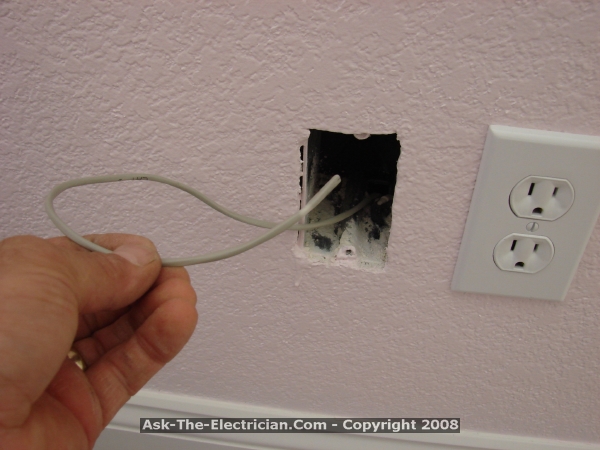

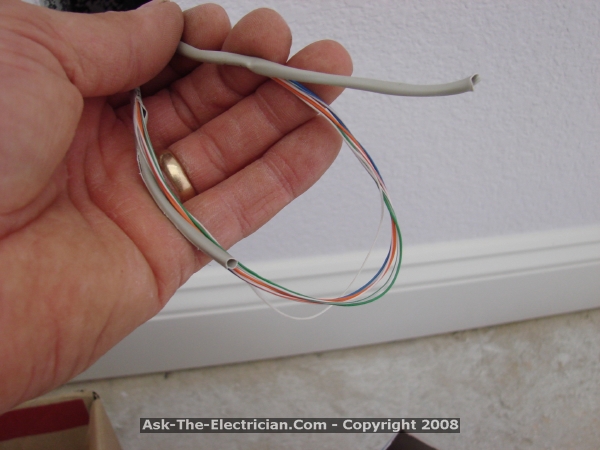

After installing the Cat 3 - 3 pair phone wire I am ready to install the wall jack. You will have a wide variety of telephone jacks to choose from but the wiring for a single line phone service will be standard.

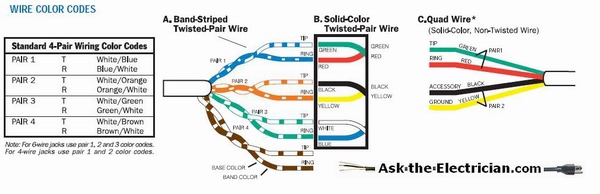

Keep in mind that the colors of the telephone wiring in your home will be typically one of two types or insulation colors. Older telephone wiring was a basic Cat-3, 4 conductor or 2-pairs with red, green, black, yellow.

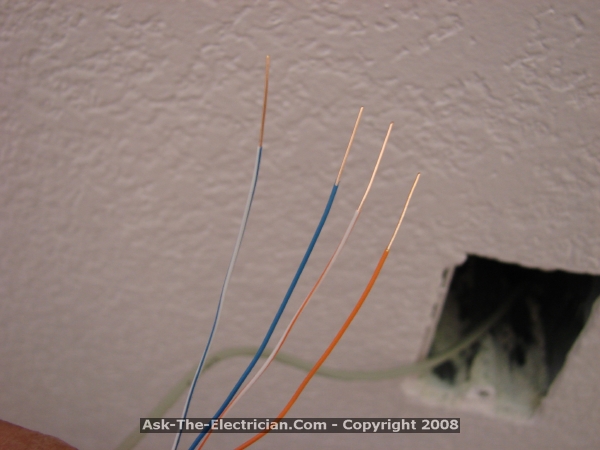

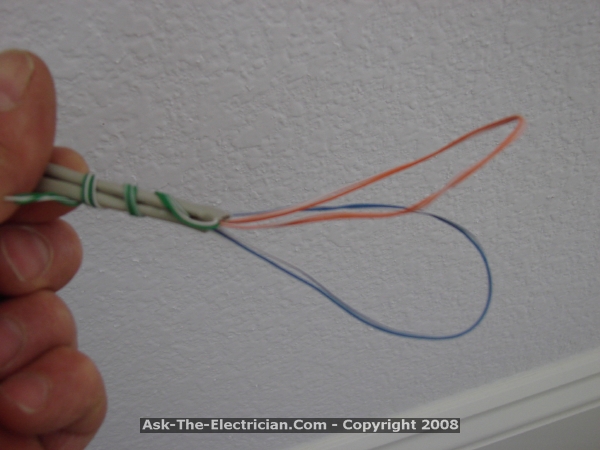

Newer homes can have anything from Cat-3, 3-pair on up to Cat-5e, with 4-pairs, with the insulation colors being a combination of solid and solid with white for each wiring pair. The wire pair colors are blue, orange, green and brown.
Features of Telephone Wiring Diagram #1
- This telephone wiring diagram shows the standard wiring for Telephone Jacks explaining the wiring connections for:
Telephone Wiring Diagram for Standard Telephones
- Conventional Telephone Systems
- Floor Telephone Jacks
- Wall Phones
- Cord Telephones
- Cordless Telephones
- Wiring Connections for:
- The Red Telephone Wire
- The Green Telephone Wire
- The Blue and White Telephone Wire
- The White and Blue Telephone Wire

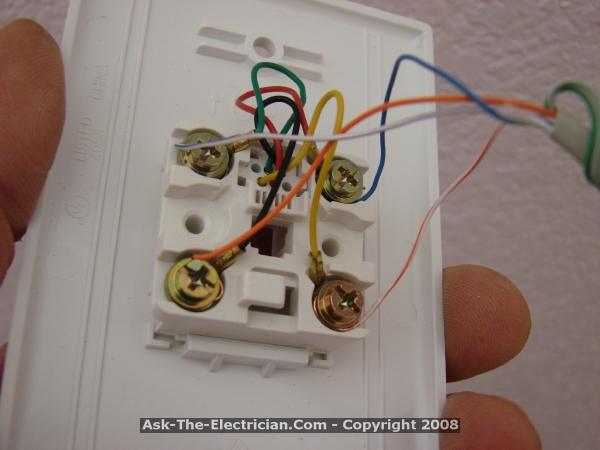

This Wiring Diagram shows the standard way to Wire Telephone Jacks
 |
|

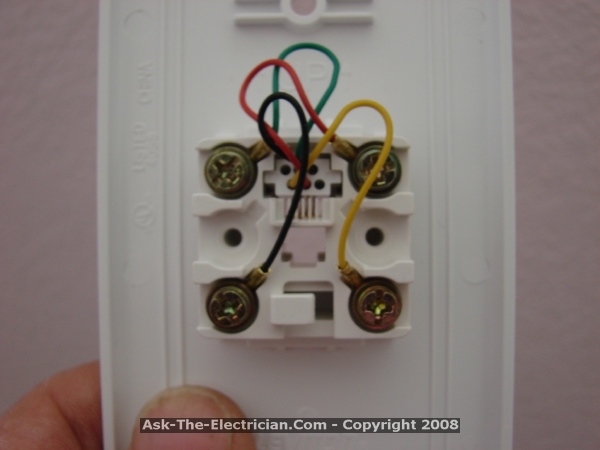

Red Wire - Green Wire White Blue Wire - Blue/White Wire After you connect the wire pair to the jack and you get a Dial Tone but you do not hear tones when you dial a number from a button pad then just reverse the pair. |

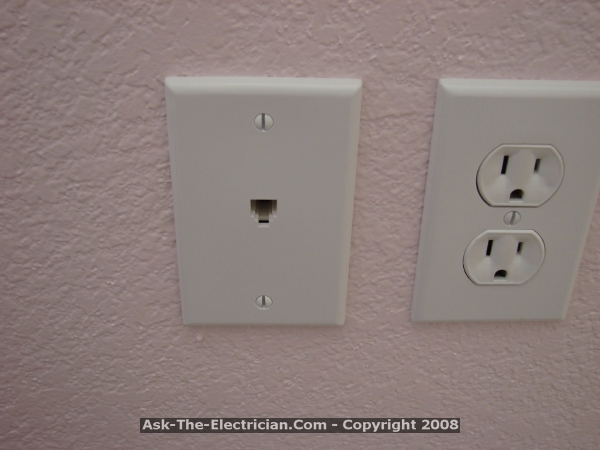

Installing a Telephone Wall Jack |
|
 |
 |
 |
 |
 |
 |
 |
 |
|

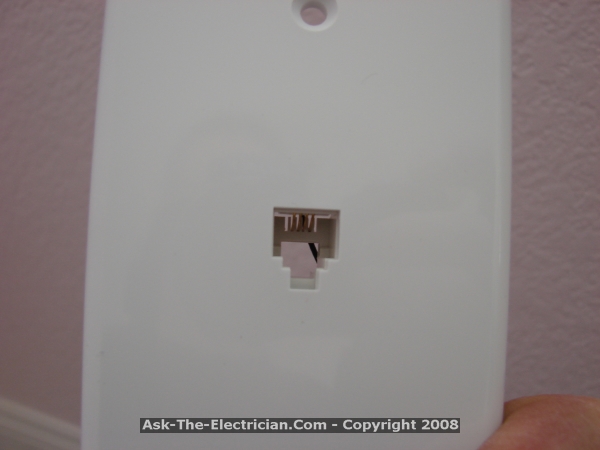

Most wall phone jacks come configured for a 2-line cord even thought a 1-line phone will work just fine. You are probably wondering why the extra pairs? Well they will be used if you ever decide to add another phone line or if for some reason the primary pair stops working, then one of the spare pairs can be used. |
Two Lines from one Telephone Jack This style of phone jack can be pre-wired for a 2-line phone service, giving you the opportunity to have a second phone number that can be used for a business line or a fax machine. |
 |
 |

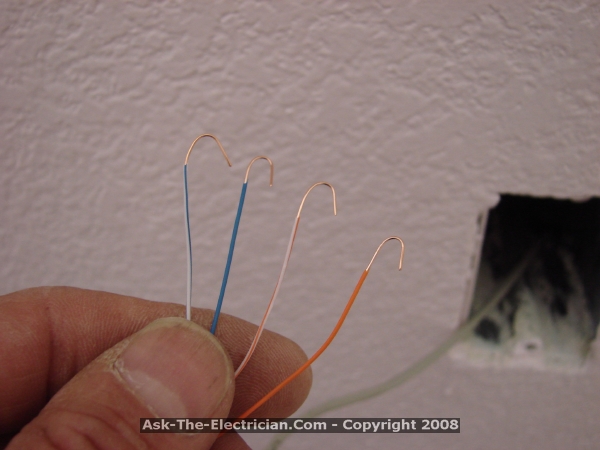

| Make sure the wires are well under the screw terminals. | If you plan to use a cordless phone its always a good idea to install your phone jack wiring beside an existing wall receptacle which will be available for a low voltage transformer which may be required. |
|
|
|||||||
